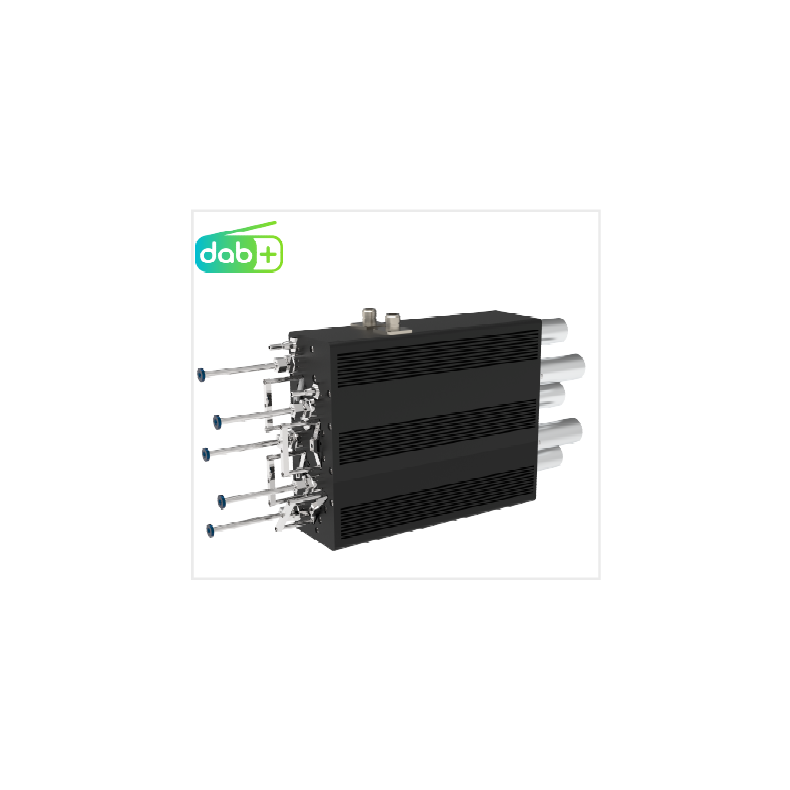

DAB 5-pole 50mm Bandpass filter
• Full-band tunable
• DC-Short
• Temperature compensated
OPTIONS (ask for quote)
• 19’’ rack mount
• Custom rack frame
PRODUCT CODE: BPF35050
No. of POLES 5-pole helliptical
CAVITY SIZE 50 mm
TEMPERATURE STABILITY < 0.8 kHz/°K
MAX OPERATING TEMPERATURE (body) 65 °C (149 °F)
TEMPERATURE OPERATING
ENVIRONMENT
-5 ÷ 50 °C
23 ÷ 122 °F
CONNECTIONS (2) and
PRODUCT CODES
N female (1) BPF35050-00
DIN 7/16 female BPF35050-22
FREQUENCY RANGE: 174 ÷ 240 MHz
MAXIMUM RMS INPUT POWER (3) 100 W
INSERTION LOSS @ F0 < 1.4 dB (4)
INSERTION LOSS @ F0 ± 0.77 MHz < 2.9 dB (4)
ATTENUATION @ F0 ± 0.97 MHz > 10 dB (4)
ATTENUATION @ F0 ± 1.77 MHz > 24 dB (4)
ATTENUATION @ F0 ± 2.20 MHz > 29 dB (4)
ATTENUATION @ F0 ± 3.00 MHz > 36 dB (4)
BANDWIDTH 1.54 MHz
RETURN LOSS
(VSWR)
< -26 dB
< 1.10
INPUT/OUTPUT IMPEDANCE 50 Ω
HARMONIC ATTENUATION > 80 dB up to 500MHz
GROUP DELAY VARIATION < 500 ns
DIMENSIONS 88x239x475 mm
3.46x9.40x18.70’’
WEIGHT 9.5 Kg ( 21 lbs)
| Title | Type | Size | Download |
|---|---|---|---|
| Delta-Meccanica-BPF35050-DAB-cavityfilter.pdf | 3.63MB | Download |
