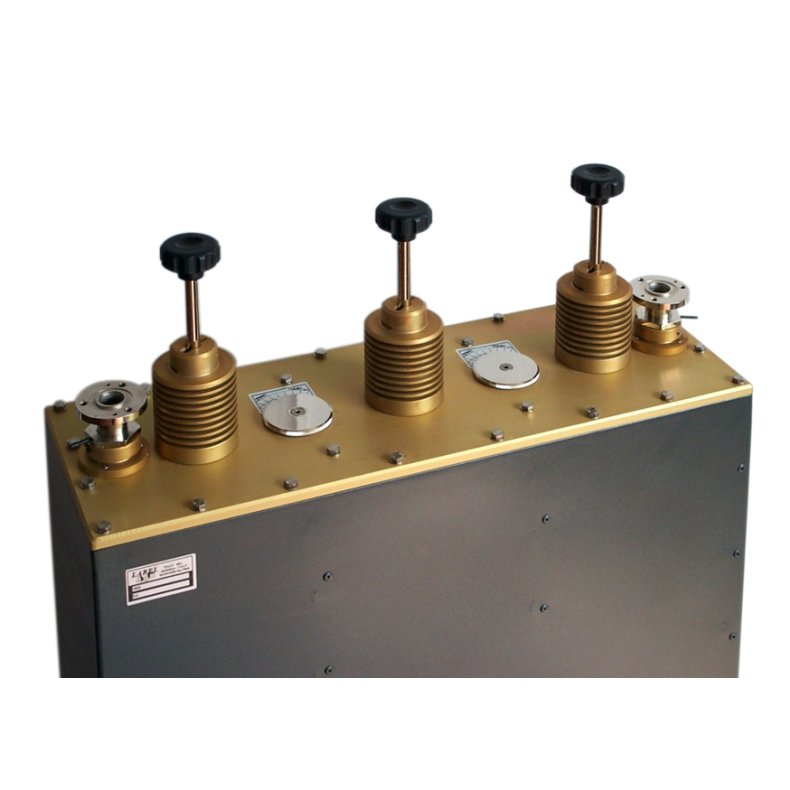

EuroCaster FDB/1031-N FM Triple Coaxial Cavity Filter Aluminium 800W

1.260,00 EUR

FM cavity filter 800W - triple coaxial - N connector

Model/Product no.: LI-FDB/1031-N

Stock status: Shipping within 7-14 working days

Piece

EuroCaster FDB/1031-N

FM triple coaxial cavity in quarter wave high “Q” with variable coupling. Installed between transmitter and antenna, provides an output signal free from spurious and a perfect isolation from other emissions. Made of aluminum with internal lines of silvered copper and PTFE insulators. These cavity filters have a B.W. command that allow you to adjust selectivity.

The TRIPLE version guarantees a superb selectivity , ideal for systems with very close frequencies between them.

Freq. Range: 87.5 – 108Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.15:1

Attenuation: < 0.4db

Power: 800 W

Bandwidth (-3db): 400 – 1000Khz

Connector: N

Weight: 12 kg

Dimensions: 125 x 40 x 20 cm

Material: Aluminium
