EuroCaster FDB/1005-S FM Double Coaxial Cavity Filter 5000 W Aluminium

2.039,00 EUR

FM cavity filter max 5000W - double coaxial - 1+5/8 connector

Model/Product no.: LI-FDB/1005-S

Stock status: Shipping within 7-14 working days

Piece

EuroCaster FDB/1005-S

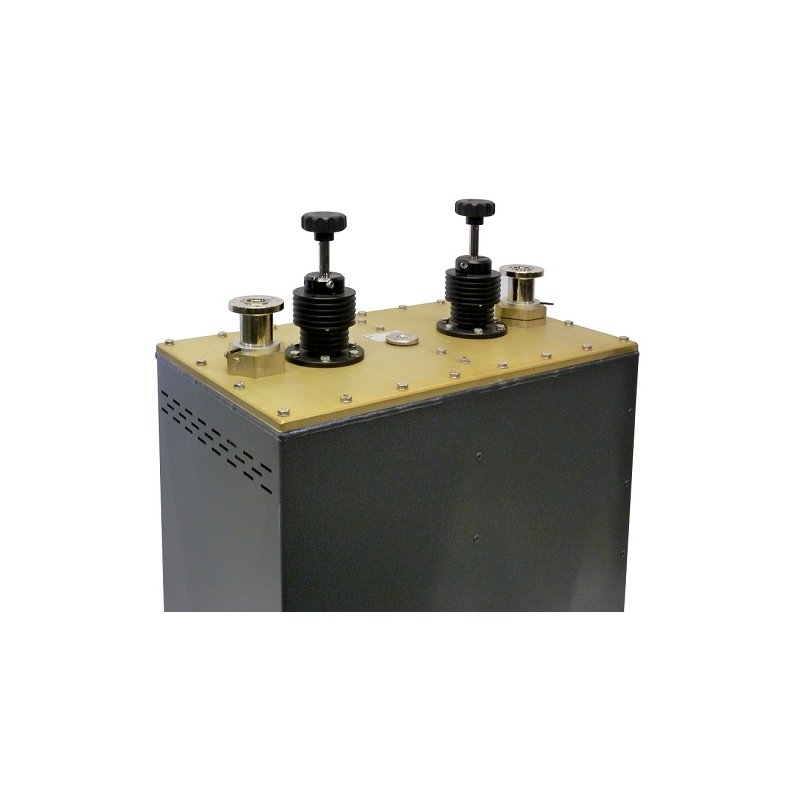

FM double coaxial cavity in quarter wave high “Q” with variable coupling. Installed between transmitter and antenna, provides an output signal free from spurious and a perfect isolation from other emissions. Made of aluminum with internal lines of silvered copper and PTFE insulators. These cavity filters have a B.W. command that allow you to adjust selectivity.

Freq. Range: 87.5 – 108Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.15:1

Attenuation: < 0.2db

Power: 5 kW

Bandwidth (-3db): 400 – 800Khz

Connector: 1+5/8

Weight: 28 kg

Dimensions: 130 x 50 x 30

Material: Aluminium
